W-Pan vs Flat Pan Patio Covers: What's the Difference?
The short answer on W-pan vs flat pan comes down to two things: how far the panel has to span, and how you want the underside to look. A W-pan panel is folded into a repeating W shape, which makes it stiff enough to carry longer spans without posts in the middle. A flat pan is a smooth insulated panel with a clean flat ceiling underneath, and it does more for shade comfort than a W-pan does.
We have been building aluminum covers across Maricopa, Pinal, Gila and Yavapai counties for more than 20 years, and this is the question we answer most often once somebody has decided on aluminum. Here is how we help people pick.
How a W-Pan Panel Works
Take a flat sheet of aluminum and fold ribs into it and you get strength you did not have before. That is the whole idea behind a W-pan. The folds run the length of the panel and act like small beams.
• Spans farther than a flat sheet of the same thickness, so you get fewer posts in your view.
• Sheds water well down the length of the pan.
• Lighter, which usually means a simpler structure underneath.
• The underside shows the ribs, so you see a ribbed ceiling from your patio chair.
How a Flat Pan Panel Works
A flat pan is built like a sandwich. Two aluminum skins with foam bonded between them. The foam does two jobs. It stiffens the panel so it does not need ribs for strength, and it slows heat coming through from above.
That second part matters more here than almost anywhere. Under a Phoenix sun in July, standing under an insulated flat pan and standing under a bare ribbed panel are noticeably different experiences. You also get a flat, finished ceiling you can mount a fan or a light into cleanly. If that is what you are after, look at our flat pan patio covers.
The Backyard That Made the Decision Obvious
A couple in Surprise wanted a cover over a long, narrow patio running the back of the house, and they wanted no posts blocking the view of their yard. On paper that pushed us toward a W-pan, since the span was the hard part.
Then they told us they wanted two ceiling fans and recessed lighting, and that they sit out there most summer evenings. We built the flat pan and carried the span with a heavier beam instead of extra posts. They got the smooth ceiling, the fans mounted flush, and a cooler patio, and they still got their unbroken view.
That is the real lesson. The panel is one decision and the structure is another. A good builder solves the span with the frame so you can pick the panel you actually want to live under.
Where the W-Pan Still Wins
I am not going to pretend the flat pan is always the answer. It is not.

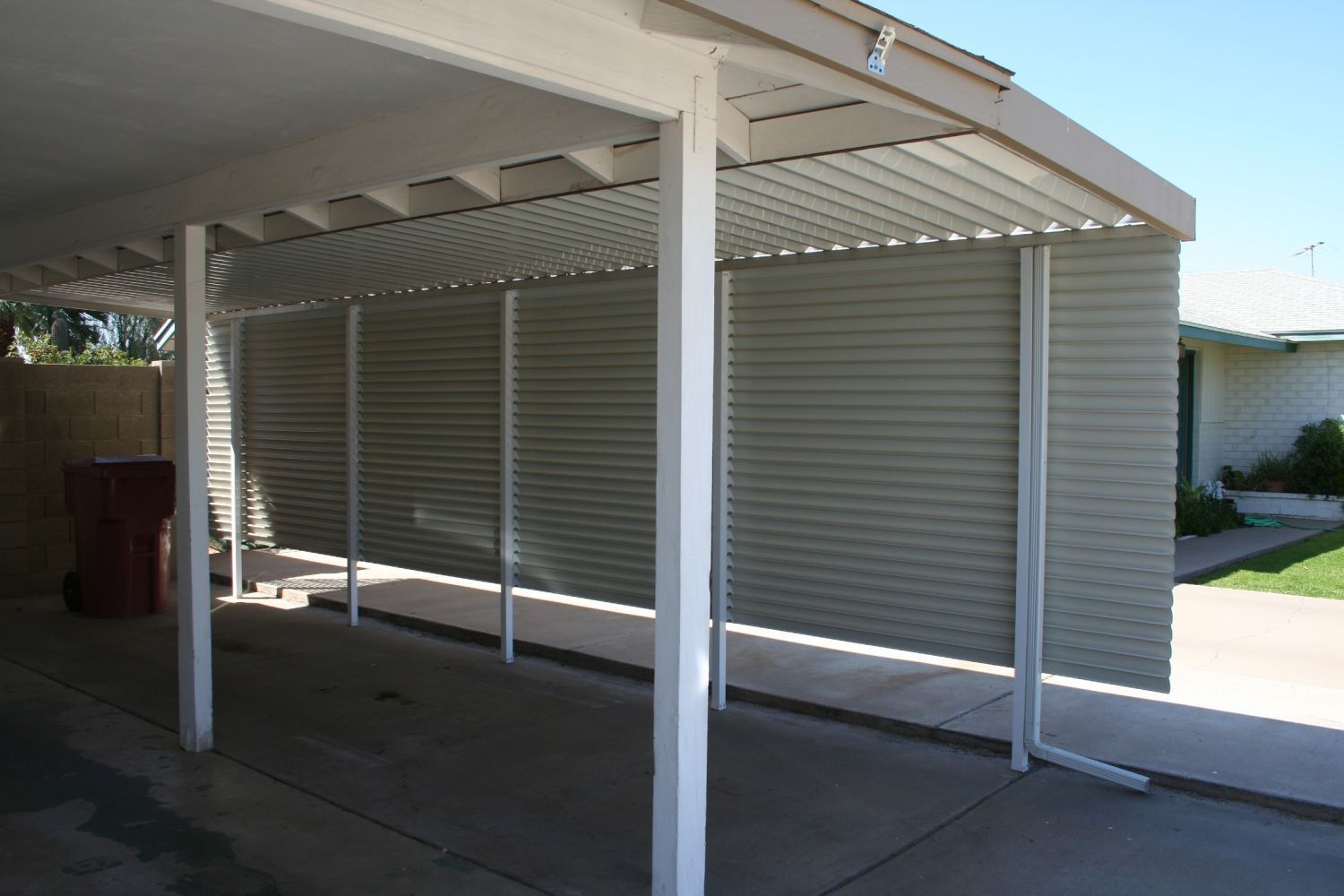

For carports, a W-pan is often the better build. You are covering a vehicle, not a seating area, so the insulation buys you less, and the span and the drainage are what matter. Our W-style pan carport covers are built for exactly that. A W-pan also costs less to build than an insulated panel of the same size, so if the budget is tight and the goal is shade over a driveway or a side yard, it is the sensible choice. And some folks simply like the ribbed look.
W-Pan vs Flat Pan: What Else Goes Into the Decision
Two practical things people forget. First, HOA rules. A lot of West Valley communities have opinions about panel profile and color, and we handle HOA approval and permit paperwork as part of the job, so you are not chasing forms.
Second, what you plan to hang. Fans, heaters, misters, and recessed lights all mount more cleanly into a flat insulated panel. If your plan includes any of that, that alone often settles the question. Our insulated solid patio covers page walks through the options, and if you are still weighing materials at all, our post on wood vs aluminum patio covers is worth a read first.
Call The Shade Experts
Still stuck on W-pan vs flat pan? Do not decide from a website. Let us come out, look at your span, your sun angle, and what you actually want to do out there, and give you a free estimate with both options laid out.
Call Southwest Patio at 623-695-6445. ROC #282768. Financing available, and we handle HOA approval and permits for you.
Frequently Asked Questions
Is a flat pan patio cover really cooler underneath?
Yes, noticeably. The foam core slows heat transfer through the panel, so the underside stays cooler than a single-skin ribbed panel sitting in the same sun. On a July afternoon in Phoenix it is a difference you feel, not one you have to measure.
Can a W-pan cover span farther than a flat pan?
For a given panel thickness, yes, the folded profile is stiffer. But span is really a structural question. We can carry a long run with a flat pan by sizing the beams properly, so you rarely have to choose the panel just to solve the span.
Which one holds up better in Arizona monsoon wind?
Both do, when they are engineered and anchored correctly. Panel type is not what fails in a storm. Undersized footings and poor attachment are. That is why we permit and engineer every cover we build.
